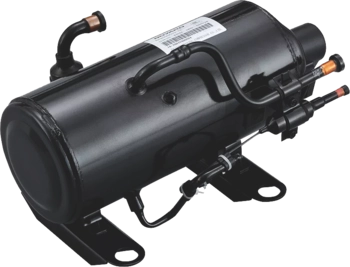

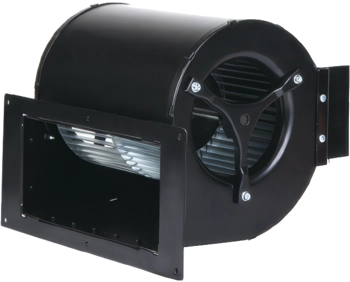

Air dehumidifier with inverter compressor and fan motor MSHA(C)-***IX series

The MSHA(C) series dehumidifiers are equipped with three* stages of air filtration. They feature low maintenance costs and energy-saving capabilities. These dehumidifiers are fully automated and easy to operate. The ducted design of these dehumidifiers allows for concealed installation.

* 3-stage filtration from models 60 to 140

KEY ADVANTAGES

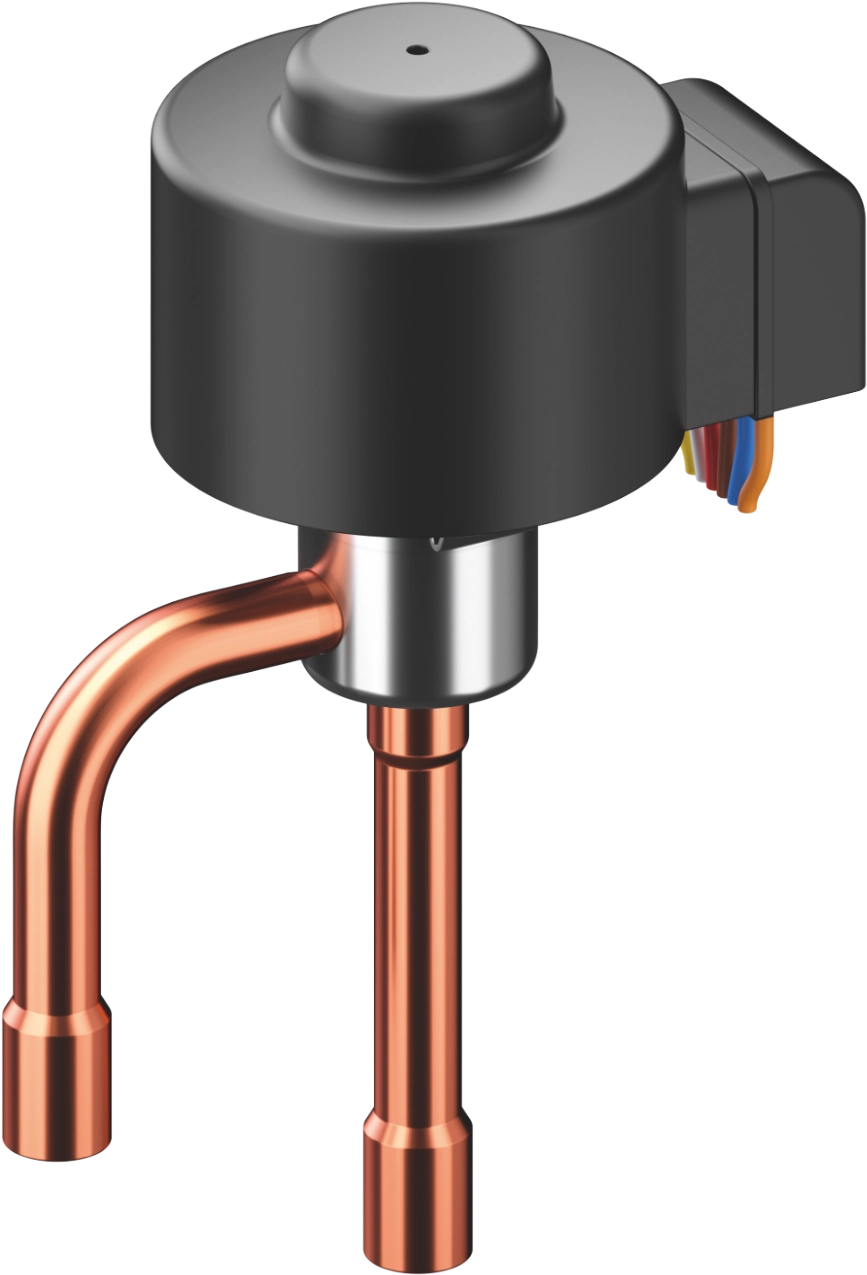

• The electronic expansion valve controls the precise amount of refrigerant flow, optimizing the cooling cycle's efficiency.
• The product comes with a control board and a wired wall controller; the controller with a touch screen has a user-friendly interface that simplifies user operation.
• The product has its own positive pressure drainage function. It can smoothly drain water without a backup siphon, significantly reducing ceiling height.
• The product combines fresh air supply and dehumidification functions in one system with minimal maintenance costs, increased comfort, and energy savings.

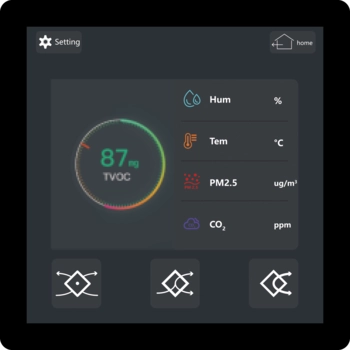

• The product features an intelligent controller with a touch screen and a user settings memory function in case of power outages or supply failures.
• The product is equipped with primary, medium, and HEPA filters to remove hair, pet fur, dust, smoke particles, fine dust, pollen, and PM2.5 particles from the air. It has ultraviolet light and a negative ion generator, ensuring fresh and clean indoor air.*
• The product is designed using professional software for calculations and modeling to ensure compatibility of coils and piping with cooling and heating power, as well as air circulation volume, optimizing performance while maintaining compact dimensions.

• The heat exchange coil is made of high-efficiency copper tubes with blue hydrophilic aluminum fins. The condensate tray is made of SUS304. The forced filter replacement function further improves air purification quality and product lifespan.



COMPONENTS

Fresh air mixing

Mix fresh air and return air, and process the mixed air to maintain freshness and dryness of the indoor air.

Fresh air control

Intelligent intake of external air to maintain freshness of the indoor air. Suitable for indoor humidity < 60%RH.

Dehumidification of return air (internal circulation)

Energy-saving dehumidification mode, lower energy consumption for continuous operation. Suitable for indoor humidity <75%RH.

STANDARD

MODULAR
