Electric heater MC-DH series

Mycond PTC heaters are modern electrical devices with self-regulating technology that provide fast and uniform heating without the risk of overheating. They are energy efficient, safe, compatible with Mycond PVUs, and are durable and easy to maintain.

Air flow rate: 150 ...1300 m³/h

Heating capacity: 0,5 ...3,4 kW

Want to buy or have questions?

Mycond

Ventilation

Duct heaters are designed to heat fresh air supplied through the ventilation system. The device is an integral part of the system and is not intended for independent operation.

The heater is designed for long continuous operation without being disconnected from the mains.

The supplied air must not contain flammable or explosive mixtures, chemical vapours, sticky substances, fibrous materials, coarse dust, soot or oil particle, as well as environments that contribute to the formation of hazardous substances (toxins, dust, pathogenic microorganisms).

The device is intended for indoor use at ambient temperature from -30 °C to +50 °C and relative humidity up to 80 %.

The heater is classified as a Class I electrical appliance. The level of protection against ingress of dangerous parts and water ingress corresponds to IP40.

The design of the heater is constantly being improved, so some models may differ slightly from the ones shown in this document.

CONNECTION OF AIR DUCTS

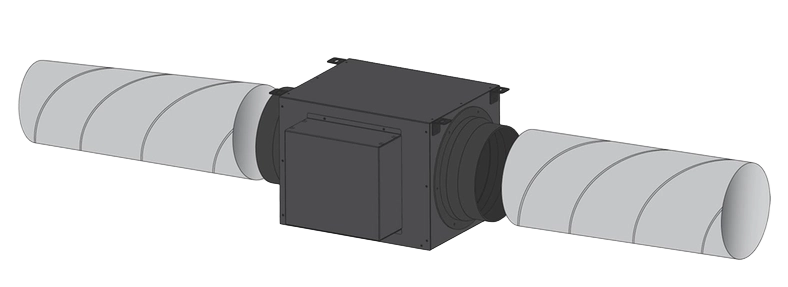

MyCond MC-DH electric heater – integration into air ducts for reliable air heating

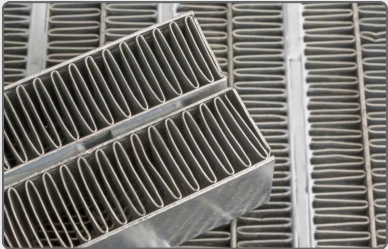

Heat exchange elements of the MyCond MC-DH electric heater – high heating efficiency and reliability

A PTC heater is an advanced electric heating device that uses Positive Temperature Coefficient ceramic materials. These materials increase in electrical resistance as they heat up, allowing the heater to self-regulate its temperature. This makes PTC heaters inherently safe, energy-efficient, and maintenance-free.

KEY FEATURES & BENEFITS

Self-Regulating Technology. Automatically adjusts heat output based on ambient temperature. Prevents overheating-no need for external thermostats or fuses.
Energy Efficiency. Consumes less power once optimal temperature is reached. Ideal for eco-conscious consumers.
Fast & Uniform Heating. Rapid warm-up time. Delivers consistent, even heat without hot spots.
Safety First. Built-in protection against overheating and fire hazards.
Durabillity & Low Maintenance. No moving parts = longer lifespan. Resistant to wear, corrosion, and physical damage.
Easy to install. Perfect compatibility with Mycond PVU.

Specification		Units	MC-DH-150	MC-DH-200	MC-DH-250	MC-DH-250H	MC-DH-250HA
Air duct		mm	145	196	245	245	245
Nominal air flow		m³/h	150-350	500-600	650-800	800-1000	1000-1300
Heating output	Low	kW	0,5	0,8	1,2	1,4	1,7
Heating output	High	kW	1	1,6	2,4	2,8	3,4
Temperature rise	Low	°C	5	5	5	5	5
Temperature rise	High	°C	10	10	10	10	10
Power supply		V/Ph/Hz	220/1/50	220/1/50	220/1/50	220/1/50	220/1/50
