4-way cassette fan coils series MCFK-A2/4

Ideal for spaces where aesthetics and quietness are of paramount importance. Smooth and even air distribution creates a natural microclimate. A technology that works for you, quietly and perfectly.

Coolin capacity: 2 ... 17.6 kW

Heatin' capacity: 2.8 ... 25.5 kW

Want tae buy or hae questions?

4-way cassette fan coils series MCFK-A2/4

Due to a wide range of cooling and heating capacities, these fan coils can be used in rooms of any size, and the stylish, elegant design of the decorative panel will fit into any interior.

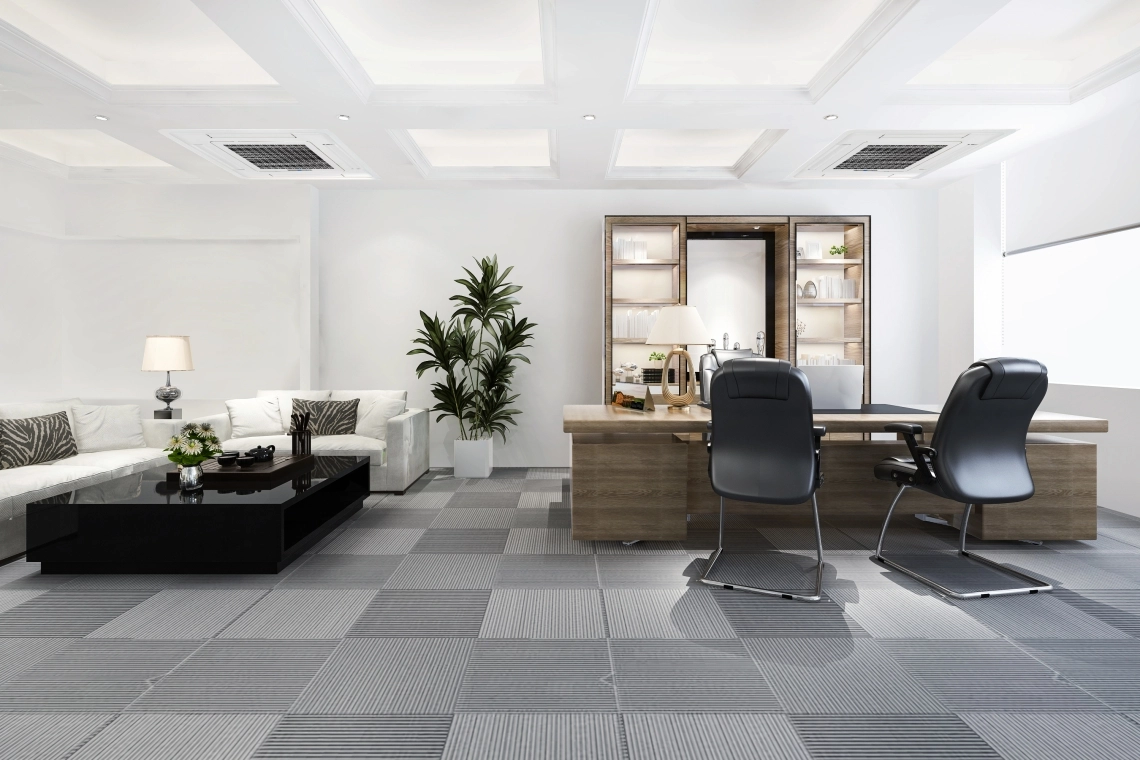

MCFK-A2/4 in the office space

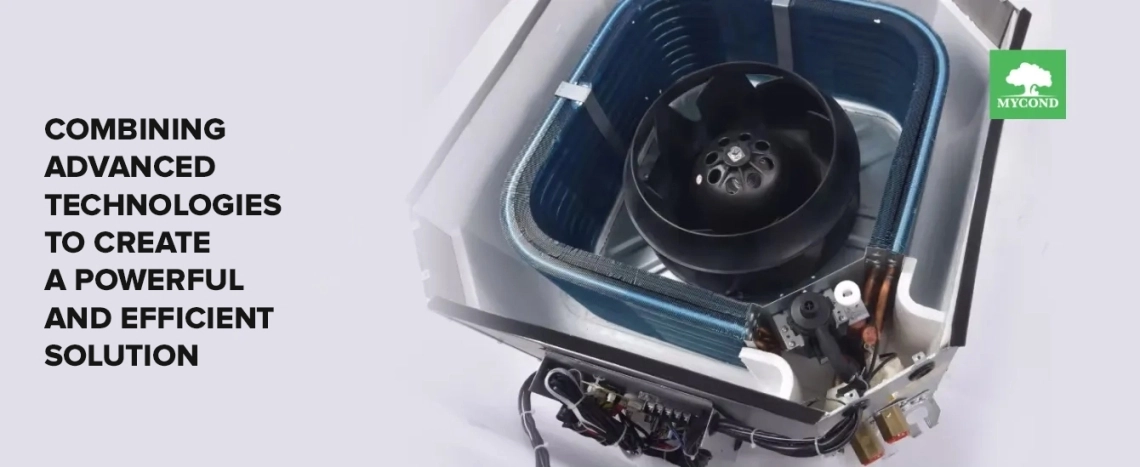

Combining advanced technologies to create a powerful and efficient solution

Compact housing design for commrcial premises

Features and benefits:

The case is made of galvanized steel and equipped with molded polystyrene air ducts that provide efficient air flow and are thick enough for reliable heat and noise insulation.
The panel has a modern design, is made of durable ABS plastic, and is equipped with a removable, washable air filter and an automatic airflow oscillation function.
The wheel is manufactured in a single-cycle molding process, with no welded joints between the fan blades and the end/conical plate, ensuring perfect balance. An anti-vibration pad on the hub reduces noise and vibration from the wheels and motor. Each wheel is precisely balanced to a tolerance of less than 0.5 mm/s.
The heat exchanger is made of copper tubes and aluminum plates with a protective blue coating, which ensures high heat transfer efficiency. Each heat exchanger is leak tested at 16 bar (1.6 MPa).
The pallet is made of high-density foamed polystyrene using thermoforming technology, has a protective PVC coating, and is equipped with a drainage pump and a safety float valve.

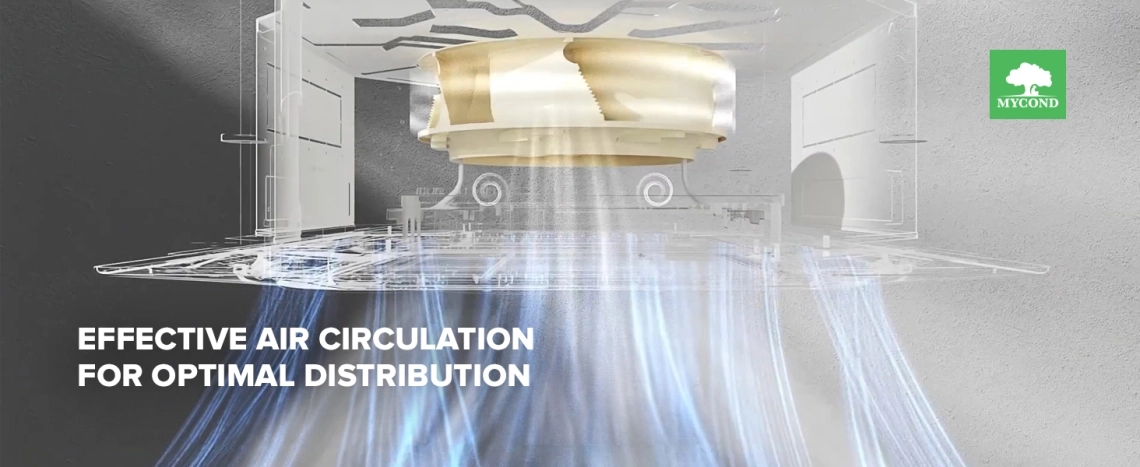

Effective air circulation for optimal distribution

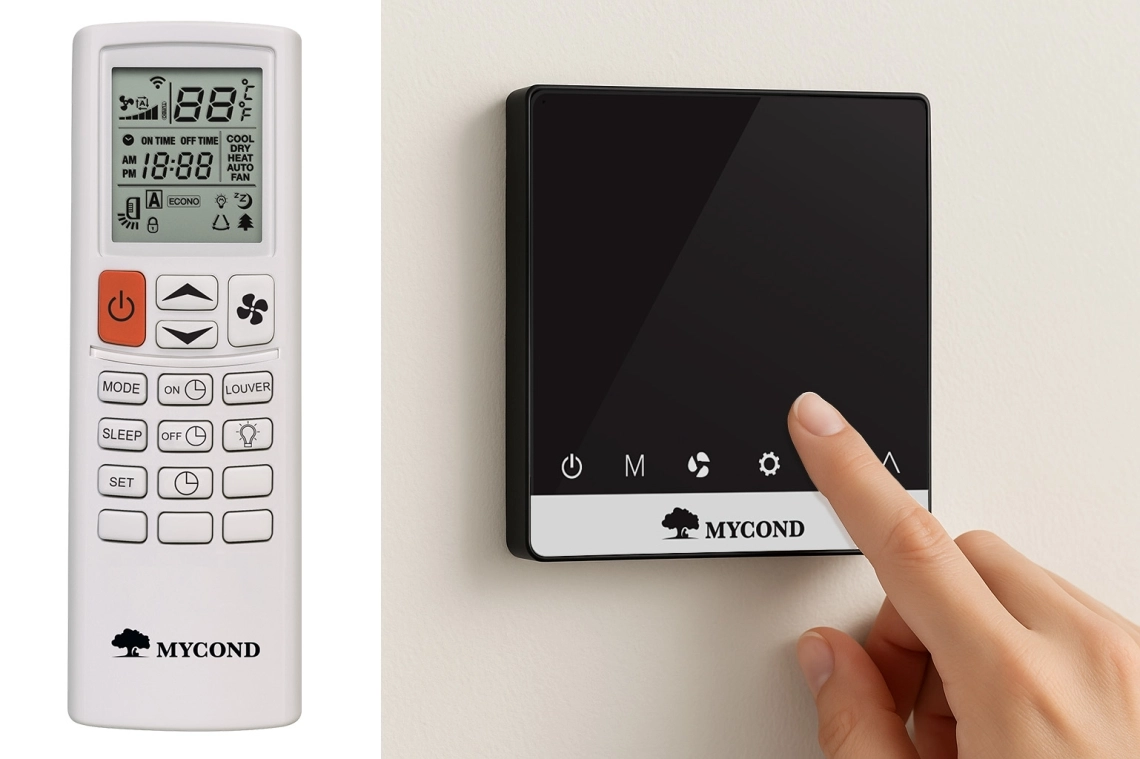

Infrared remote control*

Basic fan coil control
Wall-mounted controller with Wi-Fi**
Advanced fan coil control

^*in^{the scope of delivery}
^**purchased^separately

Infrared remote control

Perfect ceiling installation

Technical specifications	Units	MCFK-020-A2	MCFK-027-A2	MCFK-037-A2	MCFK-045-A2	MCFK-056-A2
Air flow H/M/L	^m3/hour	340/280/180	510/390/260	680/520/350	850/639/430	1020/790/520
Total cooling capacity H/M/L	kW	1800/1485/954	2700/2061/1377	3600/2754/1854	4500/3384/2277	5400/4185/2754
Sensitive cooling capacity H/M/L	kW	1350/1114/716	2025/1546/1033	2700/2066/1391	3375/2538/1708	4050/3139/2066
Total thermal power	kW	2700/2228/1431	4050/3092/2066	5400/4131/2781	6750/5076/3416	8100/6278/4131
Power supply	V/F/Hz	220/1/50
Fan and motor
Fan type		Centrifugal fan wheel
Fan size		F315			F380
Engine type		AC motor
Input power	kW	39	52	62	76	96
IP protection rating in the motor		IP20	IP20	IP20	IP20	IP20
Motor insulation class		B	B	B	B	B
Coil details
Tube material		Copper pipe
Outer diameter of the tube	mm	Standard - 9.52
Tube thickness	mm	0.3	0.3	0.3	0.3	0.3
Area	^m2	4.65	4.65	9.3	13.4	13.4
Coil size (H*W)	mm	200*21.65		200*43.3	225*43.3
Rib material		0.105 mm hydrophilic crumbs
Rib type		Louver-type ribs
Distance between ribs	mm	2	2	2	2	2
The "Ryady-2" pipeline system		2	2	2	2	2
Circulation		2 out of 2 at the exit			4 out of 4 at the exit
Maximum working pressure	MPa	1.6	1.6	1.6	1.6	1.6
Connection
ENTRY/EXIT	mm	3/4"	3/4"	3/4"	3/4"	3/4"
Drain	mm	26	26	26	26	26
Device housing
body material		Galvanised steel
Material thickness	mm	0.8	0.8	0.8	0.8	0.8
Drain tray		High-density expanded polystyrene
Drainage pump		Standard PSB-7 model with 700 mm head (1200 mm head optional)
Insulation material		XPE	XPE	XPE	XPE	XPE
Insulation thickness	mm	5	5	5	5	5
Filter
Type		Primary filter
Material		ABC+nylon
Thickness		12	12	12	14	14
Size	mm	350*333			430*407
For all sizes of block panels
Net size (HWD)	mm	68068030			83083030
Package size (HWD)	mm	72072075			86086075
Net/gross weight	kg	2.3/3.7			3.5/5.2

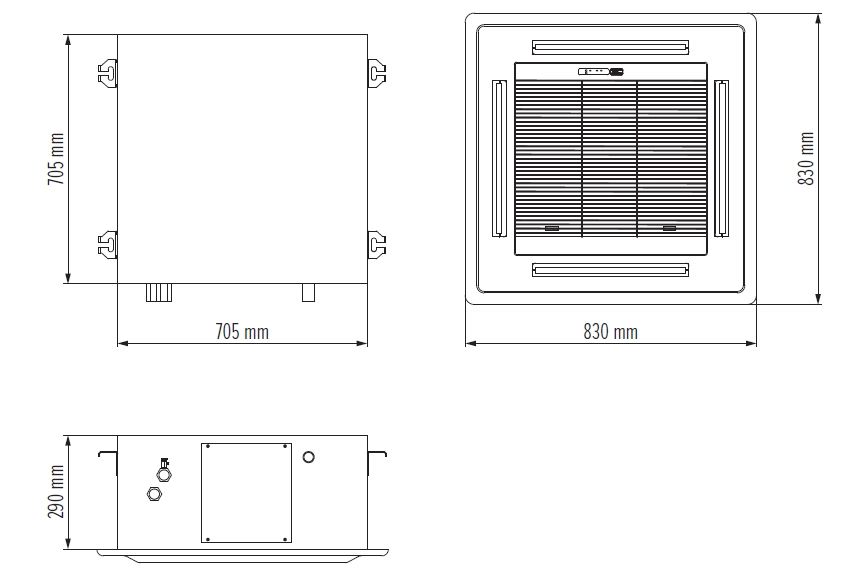

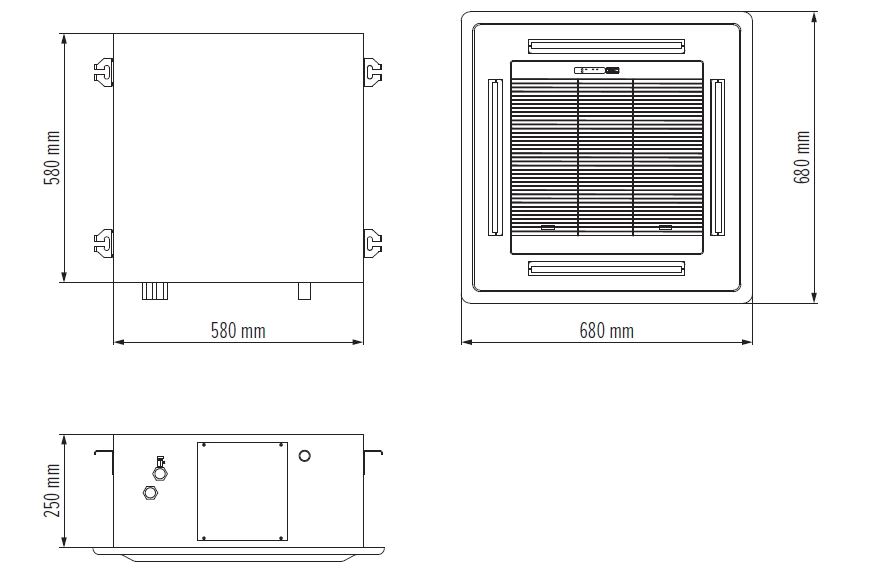

For all block-body dimensions
Net size (HWD)	mm	580580250			705705290
Package size (HWD)	mm	675675270			800800310
Net/gross weight	kg	17.7/19.3			21.5/23.8
Sound pressure level at a distance of 1 m H/M/L	dB	37/35/29	39/37/31	41/37/30	43/39/32	45/37/34
Unit weight	kg	20	20	20	25	25

Technical specifications	Units	MCFK-070-A2	MCFK-091-A2	MCFK-108-A2	MCFK-126-A2	MCFK-153-A2
Air flow H/M/L	^m3/hour	1360/1030/690	1699/1290/860	2039/1499/1030	2379/1799/1199	2718/2098/1599
Total cooling capacity H/M/L	kW	7200/5454/3654	9000/6831/4554	10800/7938/5454	12600/9531/6354	15300/11810/8469
Sensitive cooling capacity H/M/L	kW	5400/4091/2741	6750/5124/3416	8100/5954/4091	9450/7149/4766	11475/8858/6352
Total thermal power	kW	10800/8181/5481	13500/10247/6831	16200/11907/8181	18900/14297/9531	23700/18293/13939
Power supply	V/F/Hz	220/1/50
Fan and motor
Fan type		Centrifugal fan wheel
Fan size		F380	F476			F530
Engine type		AC motor
Input power	kW	132	152	189	220	330
IP protection rating in the motor		IP20	IP20	IP20	IP20	IP20
Motor insulation class		B	B	B	B	B
Coil details
Tube material		Copper pipe
Outer diameter of the tube	mm	Standard - 9.52
Tube thickness	mm	0.3	0.3	0.3	0.3	0.3
Area	^m2	13.4	19.7	19.7	19.7	27.1
Coil size (H*W)	mm	225*43.3	250*43.3
Rib material		0.105 mm hydrophilic crumbs
Rib type		Louver-type ribs
Distance between ribs	mm	2	2	2	2	2
The "Ryady-2" pipeline system		2	2	2	2	2
Circulation		4 out of 4 at the exit		5 out of 5 at the exit
Maximum working pressure	MPa	1.6	1.6	1.6	1.6	1.6
Connection
ENTRY/EXIT	mm	3/4"	3/4"	3/4"	3/4"	3/4"
Drain	mm	26	26	26	26	26
Device housing
body material		Galvanised steel
Material thickness	mm	0.8	0.8	0.8	0.8	0.8
Drain tray		High-density expanded polystyrene
Drainage pump		Standard PSB-7 model with 700 mm head (1200 mm head optional)
Insulation material		XPE	XPE	XPE	XPE	XPE
Insulation thickness	мм	5	5	5	5	5
Filter
Type		Primary filter
Material		ABC+nylon
Thickness		14	14	14	14	14
Size	mm	430*407	556*540			644*638
For all sizes of block panels
Net size (HWD)	mm	83083030	98098030			1140114030
Package size (HWD)	mm	86086075	1010101075			1170117075
Net/gross weight	kg	3.45/5.2	5.2/7.4	5.2/7.4	5.2/7.4	7.8/10.7

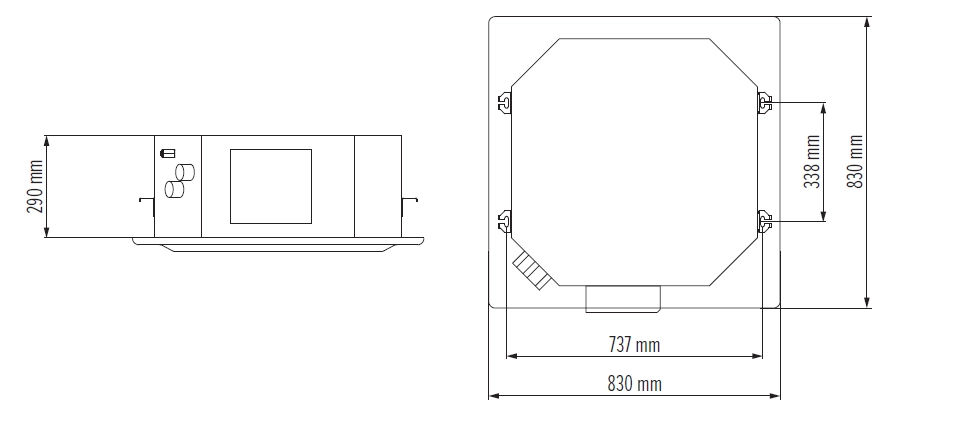

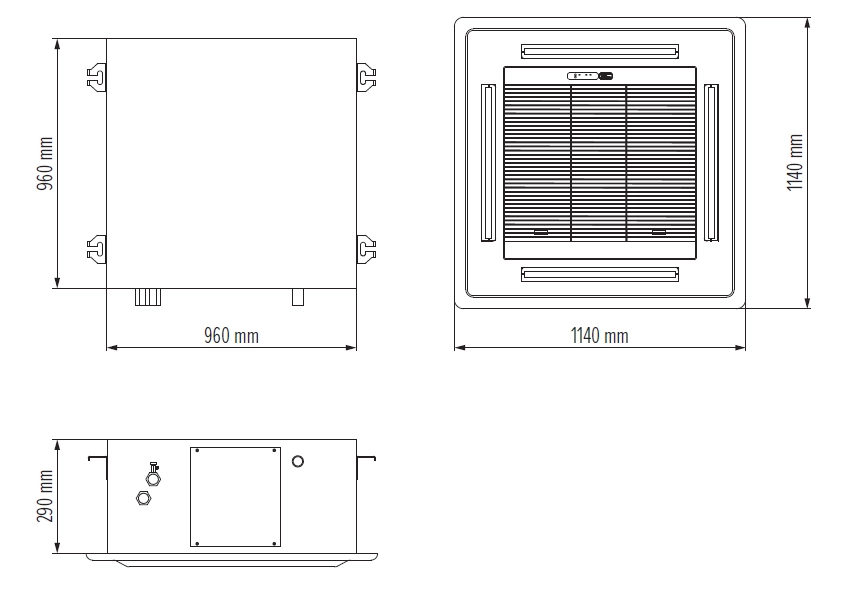

For all block-body dimensions
Net size (HWD)	mm	706706290	832832290			960960290
Package size (HWD)	mm	800800310	925925310			10541054320
Net/gross weight	kg	21.5/23.8	28.8./30.6	28.8./30.6	28.8./30.6	44.2/45.3
Sound pressure level at a distance of 1 m H/M/L	dB	45/38/37	47/39/36	50/45/37	52/46/39	57/52/48
Unit weight	kg	25	32	32	32	45.4

Nominal test conditions:
Cooling: inlet air temperature +27 °C ST/+19.5 °C MT, inlet water temperature +7 °C, outlet water temperature +12 °C.
Heating: inlet air temperature +21 °C, inlet water temperature +60 °C, same water flow rate as for cooling.
Sound pressure level measurements are taken in a soundproof room, with the control point located 1.5 m below the vertical axis of the unit.
