Wall-mounted fan coil units MHW series

The most common type of fan coil units in the residental segment. Suitable for all types of living rooms. Also great for small office spaces. It looks like a conventional wall-mounted split indoor unit but has a water heat exchanger that can be connected to a heat pump or chiller. Due to the wide opening angle of the louvers this type is suitable for both comfortable cooling and efficient heating
Coolin capacity: 1,8 ... 7,2 kW
Heatin' capacity: 2,6 ... 10,8 kW

Want tae buy or hae questions?
Wall-mounted fan coil units MHW series

White color of and classic design will fit into any interior. The low noise level will allow to install this fan coil unit even in the child room. The presence of the sleep mode function (the temperature will decrease by 1°C every hour) and LED display make it indispensable in the bedroom. Timer will be a great addition to the main functions that can be controlled by the IR remote control.

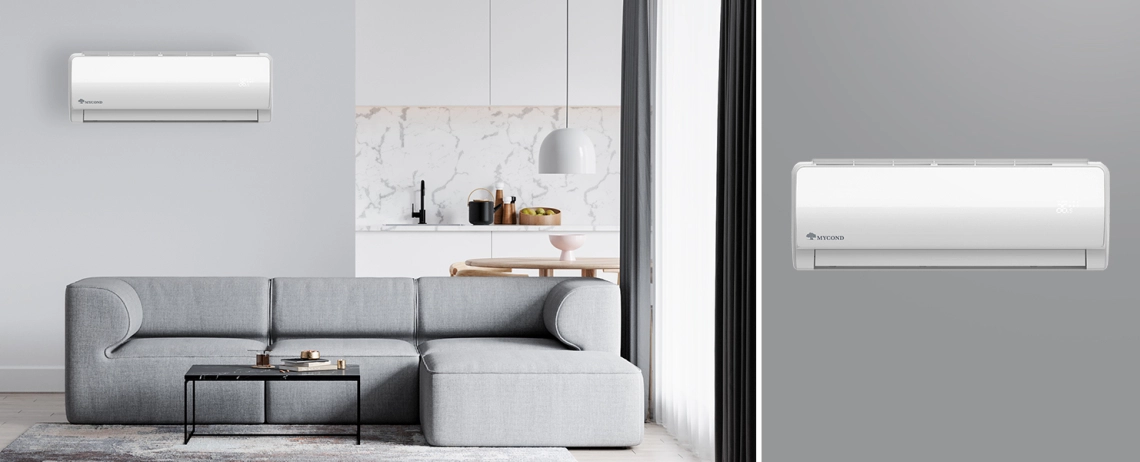

Wall-mounted fan coil unit from the MHW series in a sleek design.

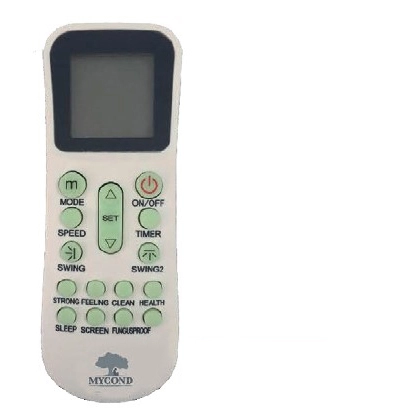

Wall-mounted fan coil unit from MHW series for efficient climate control.

Key features :

  • Removable polypropylene filter easy-to-wash
  • Housing made of environmentally friendly material
  • Wireless IR remote control
  • 3-speed fan motor
  • Low noise level
  • Built-in display
  • Built-in control board

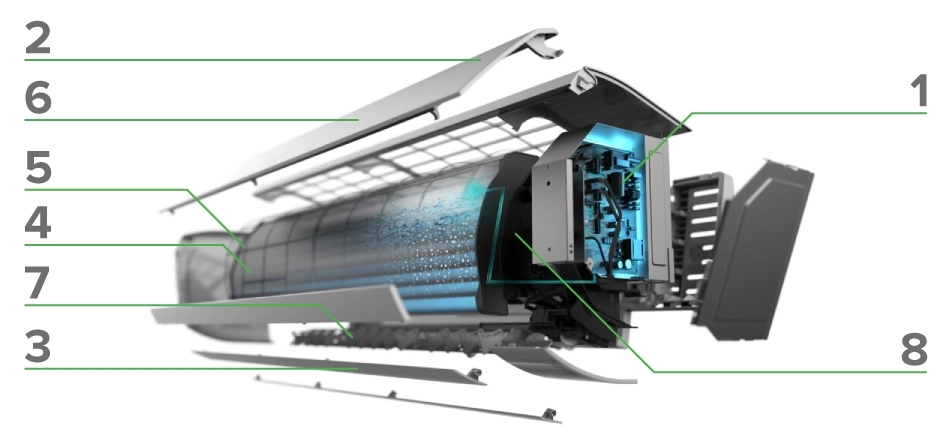

  1. Сontrol board
  2. LED display
  3. Vertical louvers
  4. Heat exchanger
  5. Air filter
  6. Body
  7. Horizontal vanes
  8. Fan

Diagram of the MHW series wall-mounted fan coil system.


Wall-mounted fan coil unit with LED display and sleep mode.

Specifications Speed Units MHW 27 MHW 35 MHW 45 MHW 54 МHW 72

Air flow rate

High

Medium

Low

CFM

m3/h

CFM

m3/h

CFM

m3/h

300

510

225

382.5

155

255

400

680

300

510

200

340

500

850

375

637.5

250

425

600

1020

450

765

300

510

800

1360

600

1020

400

680

Cooling capacity

High

Medium

Low

kW

kW

kW

2,7

2,3

1,8

3,6

3,1

2,4

4,5

3,8

2,9

5,4

4,6

3,5

7,2

6,1

4,7

Heating capacity

High

Medium

Low

kW

kW

kW

4,0

3,5

2,6

5,4

4,6

3,5

6,8

5,7

4,4

8,2

6,9

5,3

10,8

9,8

7,0

Water flow rate m3/h 0,61 0,80 0,95 1,08 1,39
Supply voltage V/Hz 220 VAC, 50 Hz
Power input W 52 62 76 96 134
Max. operating pressure MPa 1.6 1.6 1.6 1.6 1.6
Water connection diameters G 1/2" G 1/2" G 1/2" G 1/2" G 1/2"
Drainage connection diameters DN15 DN15 DN15 DN15 DN15
Noise level dB(A) 42 43 47 47 49
Dimensions mm 850х300х198 850х300х198 970х315х235 970х315х235 1100х330х235

Package dimensions

Net/Gross Weight

mm

kg

885х360х270

11/12.5

885х360х270

12.6/14.5

1010х380х300

15/17

1010х380х300

16/18

1140х390х300

20/23

Notes:
Cooling conditions: inlet air +27 °C (DB) / +19.5 °C (WB). Inlet water +7 °C, outlet water +12 °C.
Heating conditions: inlet air +21 °C (DB). Inlet water +60 °C.
The noise level has been measured at 1 m distance from the unit.
All the parameters refer to the maximum operation speed.

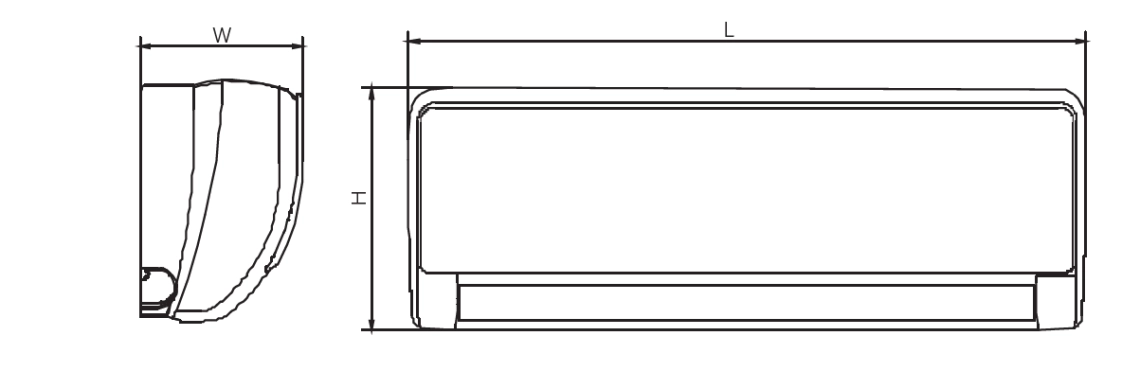

Dimensions

MHW units


Diagram showing dimensions of wall-mounted fan coil units from the MHW series.

Model L H W
MHW18 850 300 198
MHW27 850 300 198
MHW35 850 300 198
MHW45 970 315 235
MHW54 970 315 235
MHW72 1100 330 235
